USED WHITNEY HYDRAULIC CNC 40 TON PUNCH 130 AMP PLASMA MODEL 657, Year: 2012
Have one to sell?
$79,500.00 USD
$49,500.00 USD
ConditionUsed
1 available

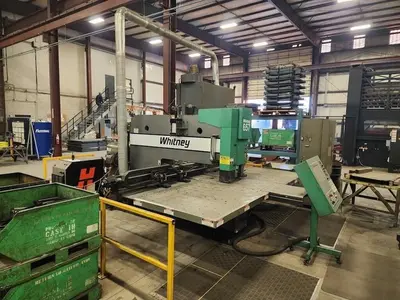

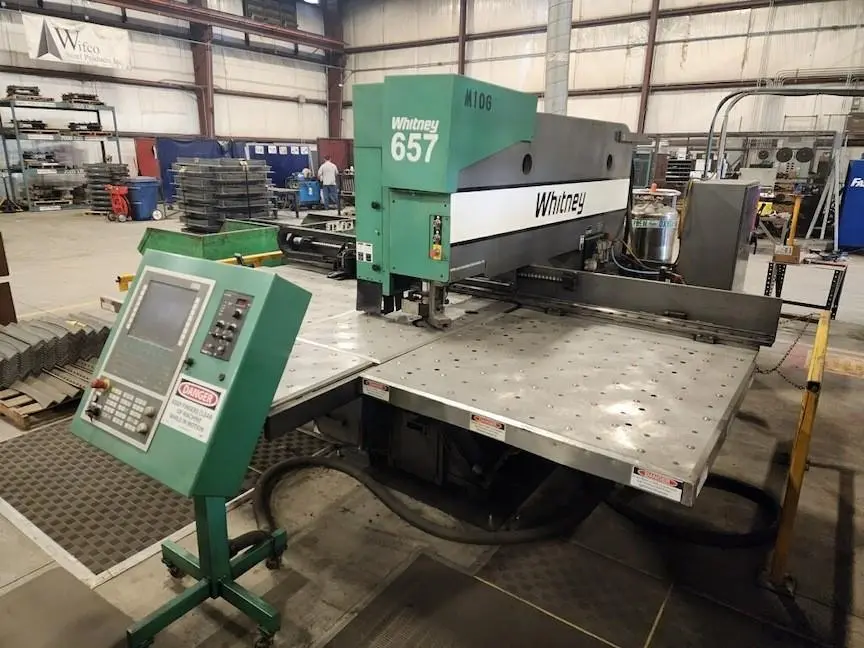

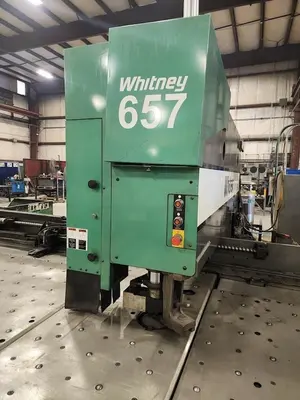

2012 WHITNEY 657 Punches, Plasma Combo in used condition. Features include 40-ton punching force, X/Y travel of 81.77"/50.59", and Hypertherm Hyspeed HSD 130. Comes with CNC control, Donaldson Torit system, and more. Ideal for high productivity.
Brand: Whitney
Model: 657
Specification:
Punching force: 40 tons
X-axis travel: 81.77"
Y-axis travel: 50.59"
Nominal distance between punch and torch: 15"
Rapid speed: 1,000 IPM
Stroke rate: 80 SPM @ 1" centers
Punch cylinder stroke length: 2"
Maximum punch size: 5"
Tooling style: 28xx
Maximum work piece weight: 500 Lbs.
Maximum work piece thickness: 1/2"
Work clamp opening: 5/8"
Maximum work piece spread: 54"
Minimum work piece spread: 5-1/2"
Plasma capacity: 1" production on M.S. 3/4" on S.S. 1" on aluminum
Hydraulic power unit: 15 H.P.
Hydraulic tank capacity: 50 gallons
Dimensions: 181" x 157" x 88-1/2"
Weight: 24,000 Lbs.
Hypertherm Hyspeed HSD 130 power supply (The HySpeed Plasma HSD130 is positioned between Powermax air plasma and HyPerformance HyDefinition plasma systems. It features impressive cut speeds, rapid piercing and minimal secondary operations for maximum productivity. A cost-effective alternative to other metal cutting solutions such as oxyfuel or air plasma, the system incorporates Hypertherm’s patented LongLife technology to significantly improve consumable life for both oxygen and air processes.)

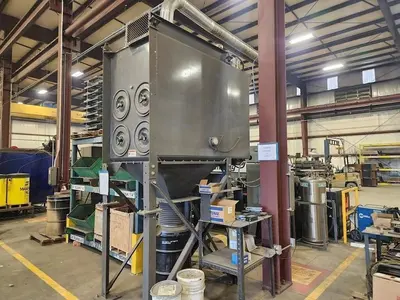

Donaldson Torit DFT2-8 8 cratridge system with integrated blower

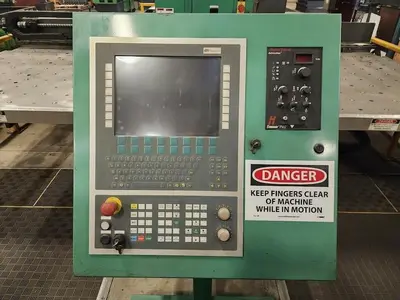

Beckhoff CNC control with SigmaNest programming system
Punching and forming capabilities include electronic stroke control, positive stripping, pressure switch for forming and marking modes.
Slug collection pan
Slag collection pan (chamber is cooled by a recirculating water jacket)
Sheet repositioning cylinders
Hydraulic heat exchanger
Foundation requirement" 6" steel reinforced concrete
Electrical requirement: 100 amps @ 480 volt
Pneumatic requirement: 90 PSI
