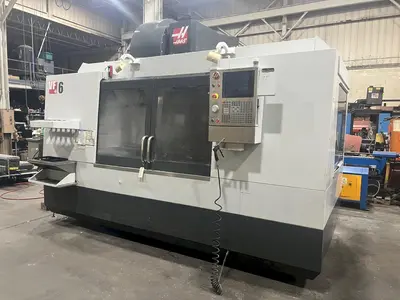

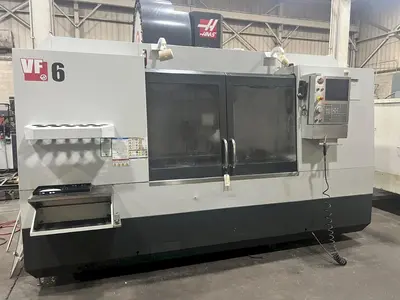

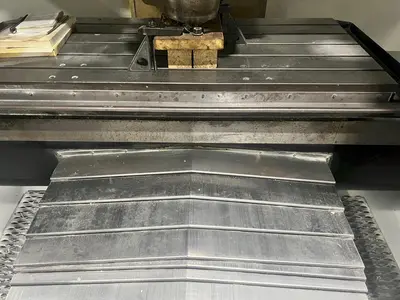

2011 HAAS VF-6/50 Vertical Machining Center, used, with 64" x 28" table, 4K lbs capacity, 64"x32"x30" travels, 7,500 RPM spindle, 30 HP motor, 30+1 ATC, 95-gallon coolant capacity. Equipped with 2-speed gearbox, rigid tapping, chip auger, and more.
Brand: Haas
Model: VF-6

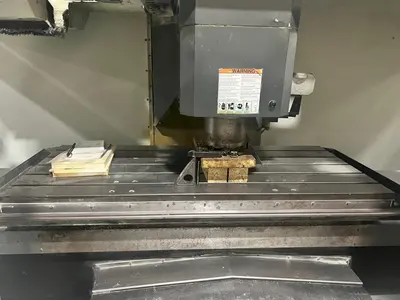

Specification: Table size: 64" x 28"
Table capacity: 4,000 Lbs.
X-axis travel: 64"
Y-axis travel: 32"
Z-axis travel: 30"
Spindle nose to table max: 35"
Spindle nose to table min: 5"
Rapid traverse (XYZ): 600 IPM

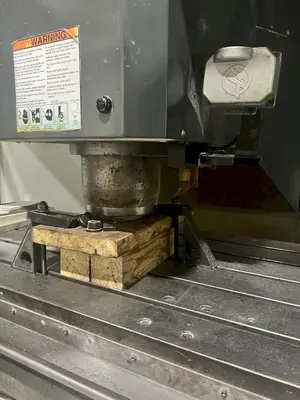

Spindle taper: CAT 50Spindle speed: 7,500 RPM
Main motor: 30 H.P.

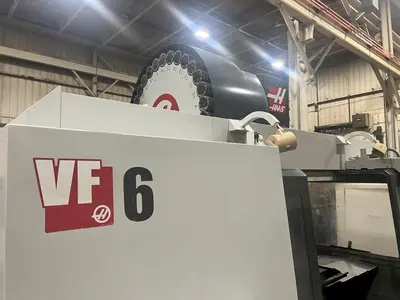

Automatic tool changer capacity: 30 + 1
Coolant capacity: 95 gallons
Air requirements: 100 PSI
Voltage: 220 volt 3 phase
Weight: 25,500 Lbs.
Dimensions: 195" x 102" x 131"
2 Speed gearbox
(5) T-slots in table
Rigid tapping

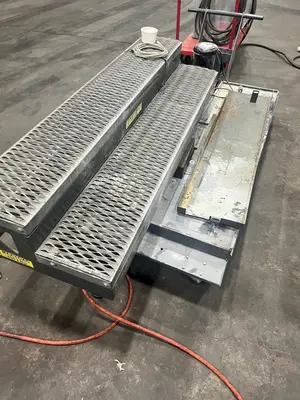

Chip auger
Early power failure detection module
Expanded memory to 750 MB
Remote handheld MPG
Programmable coolant
Coolant tank and pump
Machine has 15,118 hours of run time and has a full inspection report available upon request.
